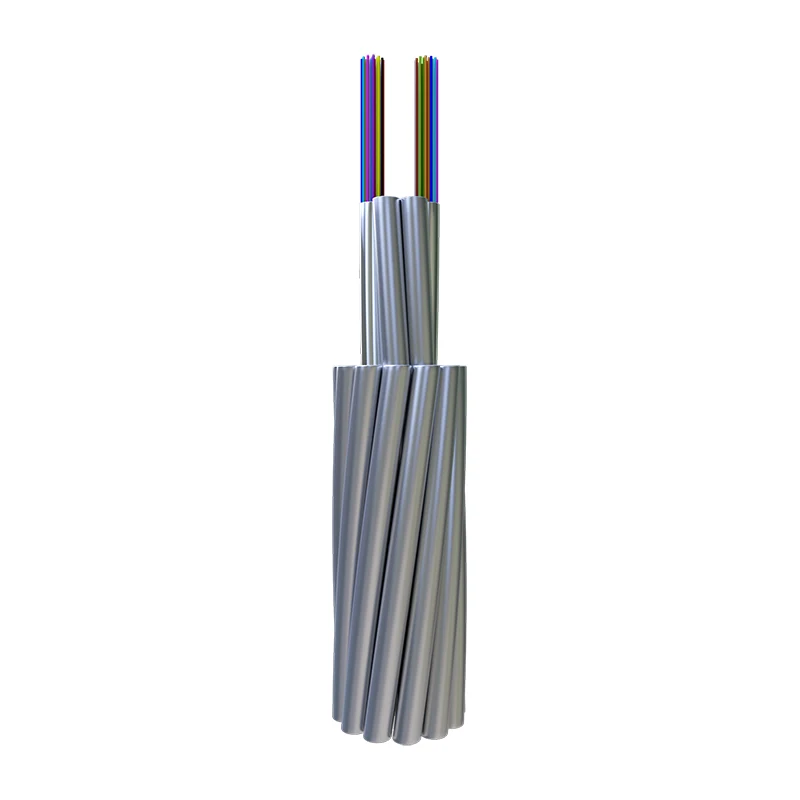

Stranded-rör sjón trefjar samsettur loftvír

Dempun

Bandbreidd

Polarization Stillingardreifing

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

Einstaklingur Trefjar

Hönnun Hlekkagildi (M = 20, Q = 0,01%)

G652D

—

—

≤0,35db/km

≤0,21db/km

—

—

≤0.20ps/ km

≤0.1ps/ km

G655

—

—

—

≤0,22db/km

—

—

≤0.20ps/ km

≤0.1ps/ km

50/125μm

≤3,0db/km

≤1,0db/km

—

—

≥600MHz.km

≥1200MHz.km

—

—

62,5/125μm

≤3,5db/km

≤1,0db/km

—

—

≥200MHz.km

≥600MHz.km

—

—

Flokkun

Efni

Gildi

Smíði

Ljós trefjar

G652D/G655 ETC.

2 - 144

Verndunarrör

Ryðfrítt stálrör

1,5 - 6mm

Strandaða línu

Sem vír/aa vír/al Rod

1,5 - 6mm

Max. Þvermál

30mm

Max. Þversnið

500mm²

Einkenni

Samkvæmt stöðlunum sem DL/T 832, IEC60794-4-10, IEEE1138

Max. Togstyrkur (RTS) (KN)

700

Max. Crush Styrkur （N/100mm）

3000

Max. Stutt núverandi afkastageta (40 ℃ til 200 ℃) (Ka2s)

2000

Mín. Beygja radíus (kraftmikið)

20D

Mín. Beygja radíus (truflanir)

15D

Umhverfi Frammistaða

Uppsetning (℃)

-10 til +50

Flutningur og rekstur (℃)

-40 til +65

Nei.

Tæknileg gögn

Vörutegund

Uppbyggingartegund

Max. Trefjar
Telja

Hluti sem vír
(Mm2)

Þvermál

（Mm）

Kapalþyngd
(kg/km)

Gefðu togstyrk

（Kn）

20 ℃ DC

Viðnám

（Ω/km）

Stuttur tími straumur

（40-200 ℃ Ka2.S）

1

OPGW-48B1.3-90- [112; 45]

1/2.6/20AS ＋ 4/2.5/20AS ＋

11/2.8/20As, sjóneining 2/2.5

48

≈90

13.2

≤641

≥112

≤0,98

≥45

2

OPGW-48B1.3-90- [57; 67]

1/2.6/40as ＋ 4/2.5/40as ＋

11/2.8/40as, sjóneining 2/2.5

48

≈90

13.2

≤457

≥57

≤0,52

≥67

3

OPGW-24B1.3-100- [118; 50]

1/2.6/20AS ＋ 5/2.5/20AS ＋

11/2.8/20As, sjóneining 1/2.5

24

≈100

13.2

≤674

≥118

≤0,93

≥50

4

OPGW-24B1.3-100- [60; 74]

1/2.6/40as ＋ 5/2.5/40as ＋

11/2.8/40as, sjóneining 1/2.5

24

≈100

13.2

≤479

≥60

≤0,49

≥74

5

OPGW-24B1.3-110- [133; 63]

1/2.6/20AS ＋ 5/2.5/20AS ＋

10/3.2/20As, sjóneining 1/2.5

24

≈110

14

≤760

≥133

≤0,83

≥63

6

OPGW-24B1.3-110- [140; 68]

1/2.8/20AS ＋ 5/2.7/20AS ＋

11/3.05/20As, sjóneining 1/2.6

24

≈110

14.3

≤791

≥140

≤0,80

≥68

7

OPGW-24B1.3-110- [67; 95]

1/2.9/20AS ＋ 5/2.8/20AS ＋

12/2,8/AA, sjóneining 1/2.7

24

≈37

≈74 (AA)

14.1

≤473

≥67

≤0,40

≥95

8

OPGW-36B1.3-120- [145; 73]

1/3.0/20AS ＋ 5/2.9/20AS ＋

12/2.9/20As, sjóneining 1/2.8

36

≈120

14.6

≤820

≥145

≤0,77

≥73

9

OPGW-36B1.3-120- [95; 98]

1/3.0/30as ＋ 5/2.9/30as ＋

12/2.9/30as, sjóneining 1/2.8

36

≈120

14.6

≤700

≥95

≤0,55

≥98

10

OPGW-36B1.3-120- [74; 110]

1/3.0/40as ＋ 5/2.9/40as ＋

12/2.9/40as, sjóneining 1/2.8

36

≈120

14.6

≤582

≥74

≤0,42

≥110

11

OPGW-72B1.3-120- [147; 76]

1/3.2/20AS ＋ 4/3.0/20AS ＋

12/3.0/20As, sjóneining 2/2.9

72

≈120

15.2

≤832

≥147

≤0,76

≥76

12

OPGW-72B1.3-120-2 [96; 101]

1/3.2/30as ＋ 4/3.0/30as ＋

12/3.0/30as, sjóneining 2/2.9

72

≈120

15.2

≤711

≥96

≤0,53

≥101

13

OPGW-72B1.3-120- [74; 114]

1/3.2/40as ＋ 4/3.0/40as ＋

12/3.0/40as, sjóneining 2/2.9

72

≈120

15.2

≤591

≥74

≤0,40

≥114

14

OPGW-36B1.3-130- [155; 85]

1/3.2/20AS ＋ 5/3.0/20AS ＋

12/3.0/20As, sjóneining 1/2.9

36

≈130

15.2

≤879

≥155

≤0,72

≥85

15

OPGW-36B1.3-130- [102; 114]

1/3.2/30as ＋ 5/3.0/30as ＋

12/3.0/30as, sjóneining 1/2.9

36

≈130

15.2

≤751

≥102

≤0,50

≥114

16

OPGW-36B1.3-130- [79; 137]

1/3.2/40as ＋ 5/3.0/40as ＋

12/3.0/40as, sjóneining 1/2.9

36

≈130

15.2

≤624

≥79

≤0,40

≥137

17

OPGW-36B1.3-140- [175; 100]

1/3.3/20AS ＋ 5/3.2/20AS ＋

12/3.2/20As, sjóneining 1/3.1

36

≈140

16.1

≤995

≥175

≤0,65

≥100

18

OPGW-36B1.3-140- [115; 140]

1/3.3/30AS ＋ 5/3.2/30AS ＋

12/3.2/30as, sjóneining 1/3.1

36

≈140

16.1

≤850

≥115

≤0,45

≥140

19

OPGW-36B1.3-145- [86; 170]

1/3.3/20AS ＋ 5/3.2/20AS ＋

12/3.2/AA, sjóneining 1/3.1

36

≈49

≈96 (AA)

16.1

≤611

≥86

≤0,31

≥170

20

OPGW-48B1.3-150- [182; 123]

1/3.4/20AS ＋ 5/3.3/20AS ＋

12/3.3/20As, sjóneining 1/3.2

48

≈150

16.6

≤1055

≥182

≤0,60

≥123

21

OPGW-48B1.3-150- [122; 165]

1/3.4/30as ＋ 5/3.3/30as ＋

12/3.3/30as, sjóneining 1/3.2

48

≈150

16.6

≤901

≥122

≤0,42

≥165

22

OPGW-48B1.3-150- [95; 195]

1/3.4/40as ＋ 5/3.3/40as ＋

12/3.3/40as, sjóneining 1/3.2

48

≈150

16.6

≤747

≥95

≤0,33

≥195

23

OPGW-72B1.3-150- [172; 110]

1/3.4/20AS ＋ 4/3.3/20AS ＋

12/3.3/20As, sjóneining 2/3.2

72

≈150

16.6

≤998

≥172

≤0,64

≥110

24

OPGW-72B1.3-150- [116; 147]

1/3.4/30AS ＋ 4/3.3/30AS ＋

12/3.3/30as, sjóneining 2/3.2

72

≈150

16.6

≤853

≥116

≤0,45

≥147

25

OPGW-48B1.3-170- [198; 150]

1/3.6/20AS ＋ 5/3.5/20AS ＋

12/3.5/20As, sjóneining 1/3.4

48

≈170

17.6

≤1190

≥198

≤0,54

≥150

26

OPGW-72B1.3-170- [199; 156]

1/3.8/20AS ＋ 4/3.6/20AS ＋

12/3.6/20As, sjóneining 2/3.5

72

≈170

18.2

≤1187

≥199

≤0,54

≥156

27

OPGW-48B1.3-180- [252; 125]

1/3.8/14as ＋ 5/3.6/14as ＋

12/3.6/14as, sjóneining 1/3.5

48

≈180

18.2

≤1372

≥252

≤0,72

≥125

28

OPGW-48B1.3-180- [211; 175]

1/3.8/20AS ＋ 5/3.6/20AS ＋

12/3.6/20As, sjóneining 1/3.5

48

≈180

18.2

≤1255

≥211

≤0,50

≥175

29

OPGW-48B1.3-180- [147; 234]

1/3,8/30AS ＋ 5/3.6/30as ＋

12/3.6/30as, sjóneining 1/3.5

48

≈180

18.2

≤1071

≥147

≤0,35

≥234

30

OPGW-48B1.3-180- [113,262]

1/3.8/40as ＋ 5/3.6/40as ＋

12/3.6/40as, sjóneining 1/3.5

48

≈180

18.2

≤888

≥113

≤0,28

≥262

31

OPGW-48B1.3-235- [268; 243.4]

1/2.7/20AS ＋ 4/2.5/20AS ＋

12/2.5/20As+13/3.8/20As,

Ljóseining 1/3.5

48

≈235

20.3

≤1594

≥268

≤0,38

≥243.4

Liður

Próf Aðferð

Kröfur

Spenna

Iec 60794-1-2-E1

Hleðsla: Samkvæmt kapalbyggingu

Dæmi Lengd: hvorki meira né minna en 10m, tengd lengd hvorki meira né100m

Lengd Tími: 1 mín

40%RTS Enginn viðbótarfyrirtæki （0,01%）, engin viðbót demping (0,03db).

60%RTS FYRIRTÆKIÐ Álag 0,25%， viðbótar demping≤0.05db

(Nei Viðbótar demping eftir próf).

Mylja

Iec 60794-1-2-E3

Hleðsla: Samkvæmt töflu hér að ofan, þrjú stig

Lengd Tími: 10 mín

Til viðbótar demping við 1550nm ≤0,05db/fi bre; Engin skemmdir á þáttunum

Vatn Skarpskyggni

Iec 60794-1-2-F5B

Tími : 1 klukkustund sýnislengd: 0,5m

Vatn Hæð: 1m

Nei vatnsleka.

Hitastig Hjólreiðar

Iec 60794-1-2-F1

Dæmi Lengd: hvorki meira né minna en 500m

Hitastig Svið: -40 ℃ til +65 ℃

Hringrás: 2

Hitastig Hjólreiðarpróf dvalartími: 12H

The Breyting á dempunarsamvinnu skal vera minni en 0,1db/km við 1550nm.
